Top Quality A/C System Installation In Plainsboro Township NJ

Right On Air Conditioning And Heating completed an AC system replacement on Edgemere Ave in Plainsboro Township, New Jersey. The project replaced both the indoor and outdoor components of the air conditioning system to restore reliable cooling for the home.

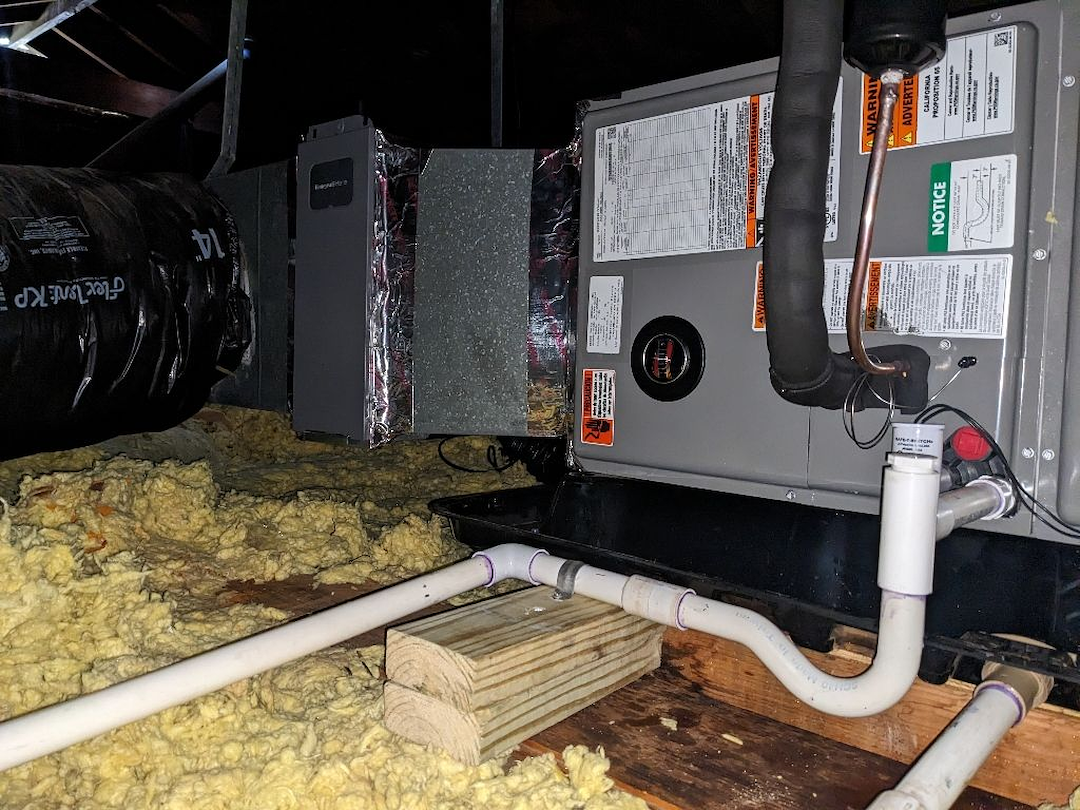

We removed the existing air handler located in the attic and took out the outdoor condenser. After removal, our technicians supplied and installed a new RUUD air handler in the same attic location. Installing the new unit in the existing space minimized disruption inside the home and kept the duct connections and routing intact.

To address potential condensate issues, we installed a Goliath drain pan underneath the new air handler. That pan includes a float safety switch, and we also added an SS2 float safety switch on the secondary side of the evaporator coil. We like to be redundant with float safety switches in case one happens to fail, so the two switches provide an extra layer of protection against overflow and potential water damage.

For improved indoor air quality and easier maintenance, we installed a Honeywell 4 inch media air cleaner. This media filter reduces the frequency of filter changes, improves air quality, and makes filter replacement easier for the homeowner when it is time to renew the media.

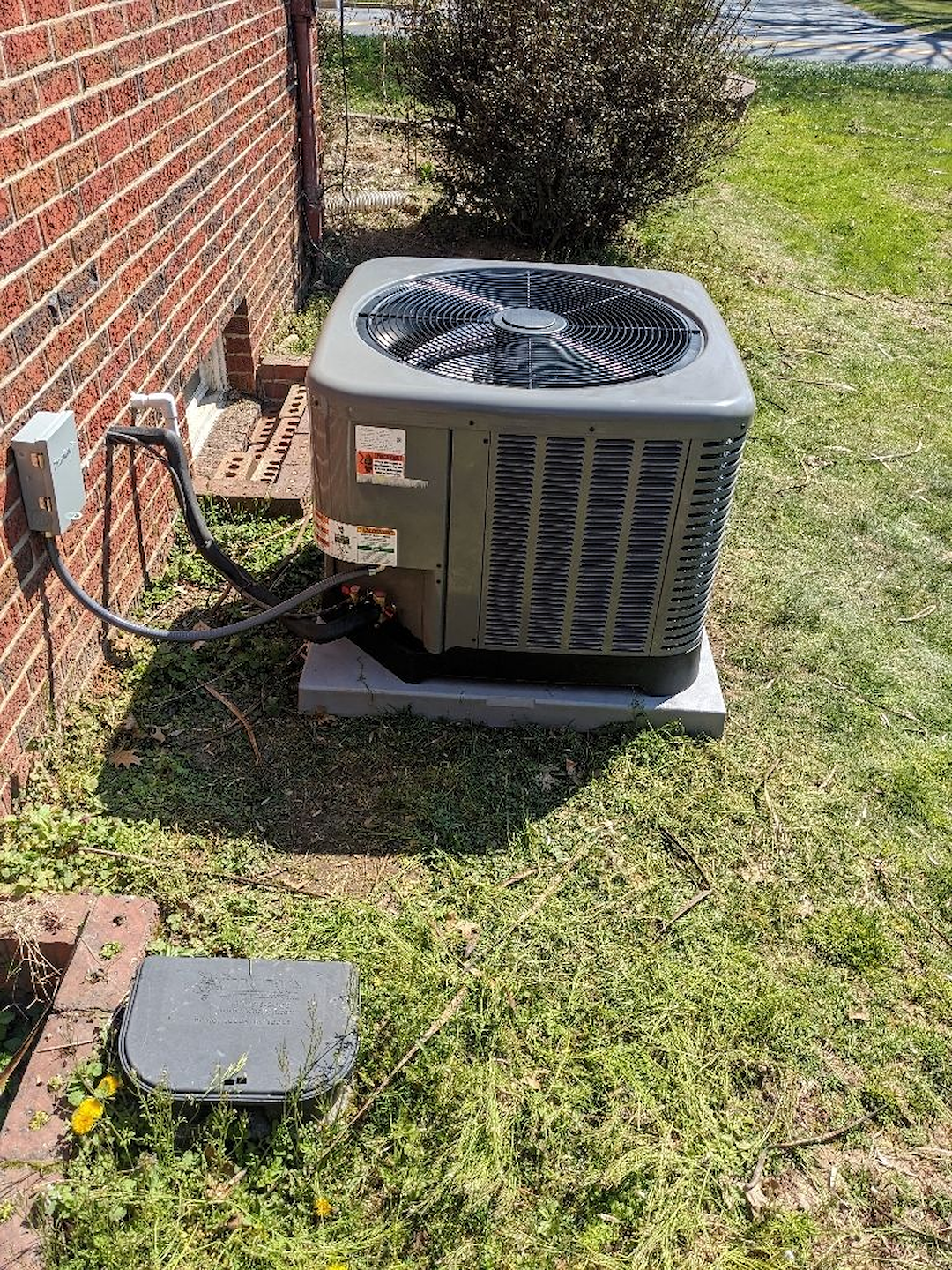

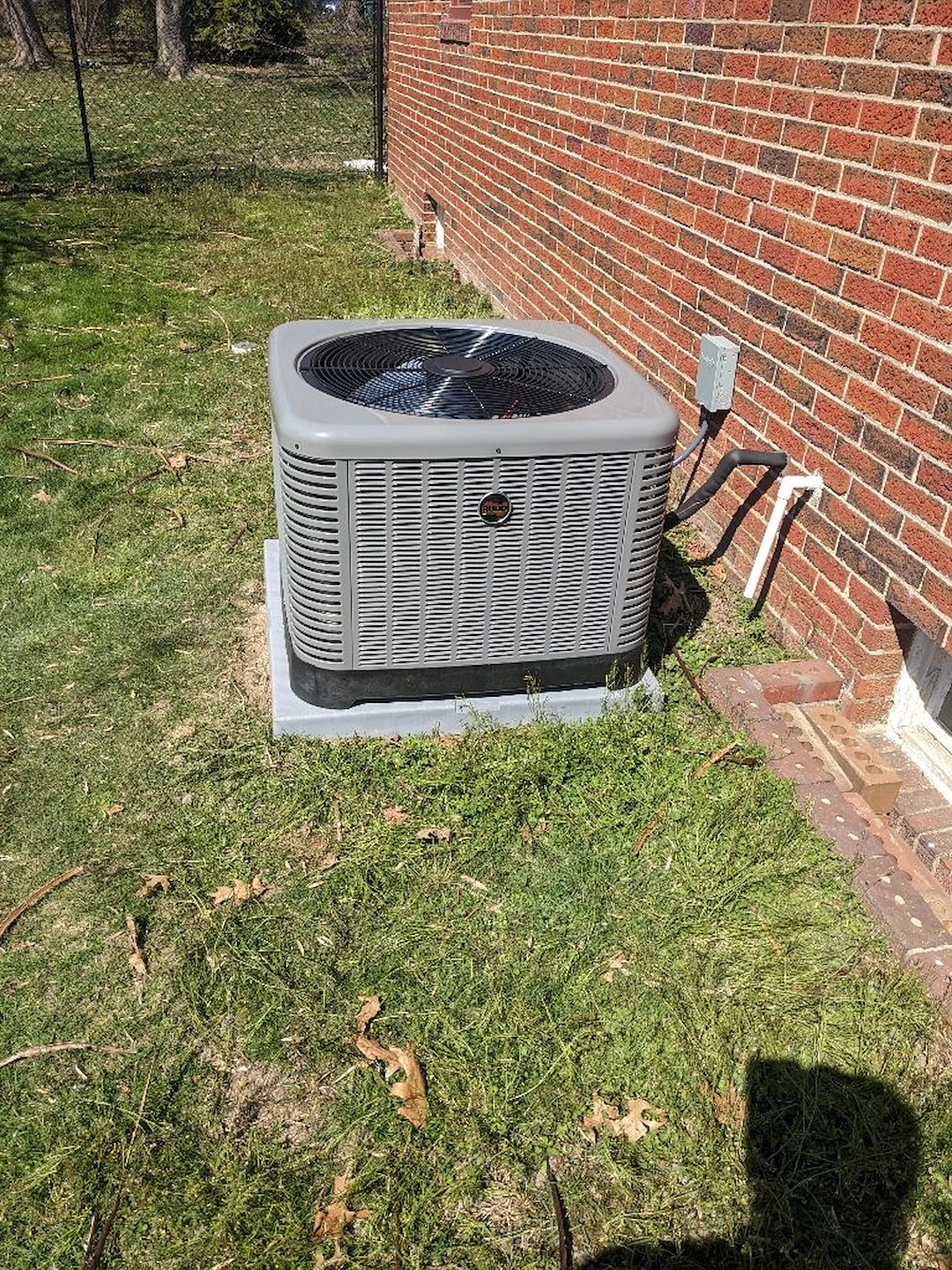

We sized and installed the line set between the air handler and the condenser to ensure correct refrigerant piping and system performance. Outside, the new condenser was set on a 3 inch composite pad that we installed to provide a stable, level base that resists settling and deterioration over time.

All required electrical work was completed as part of the replacement. We installed a new electrical fuse and a disconnect box, and ran a cable whip from the disconnect box to the condenser. These electrical updates meet safety requirements and provide a proper service disconnect for the outdoor unit.

Finally, we installed a Honeywell programmable thermostat at the existing thermostat location. The new thermostat gives the homeowner straightforward programming options to manage comfort and system run times.

Right On Air Conditioning And Heating performed this air conditioning system replacement in Plainsboro Township, New Jersey with a focus on proper installation details and safety features. The project included equipment replacement, condensate protection, improved filtration, proper refrigerant piping, a stable outdoor pad, updated electrical service, and a programmable control, all installed to industry practices for a complete AC system replacement.
